PRODUCT SPEC
6축 주행다관절 YMX 5200 가반하중: 50kg
7축 주행다관절 YMX 2510 가반하중: 25kg
Download 2D Drawings
YMX-5200 (표준).zip

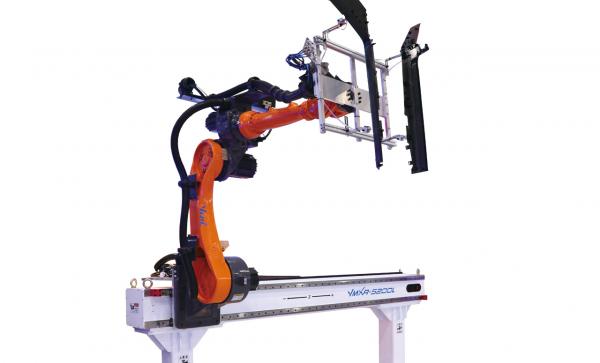

6축 주행다관절 YMX 5200
| Payload | 50kg | |
|---|---|---|
| Maximum Working Radius | 2248mm | |
| Main Body Weight | 610kg | |
| Repeatability | ±0.08mm | |
| Maximum Speed (J6) | 360˚/sec | |
| Rated Capacity | 26.7kW | |
| Operating Environment | Temperature | 0 ~ +45℃ |
| Humidity | 20~80%RH (Non-condensing) | |
| Vibration | Less than 4.9m/s2(0.5G) | |
| Others | Free from explosive or corrosive gas and liquid | |
| Free from dust, oil or water | ||
| Free from electrical noise | ||
Download 2D Drawings
YMX-2510 (표준).zip
7축 주행다관절 YMX 2510
| Payload | 25kg | |
|---|---|---|
| Maximum Working Radius | 1761mm | |
| Main Body Weight | 260kg | |
| Repeatability | ±0.06mm | |
| Maximum Speed (J6) | 630˚/sec | |
| Rated Capacity | 11.1kW | |
| Operating Environment | Temperature | 0 ~ +45℃ |
| Humidity | 20~80%RH (Non-condensing) | |
| Vibration | Less than 4.9m/s2(0.5G) | |
| Others | Free from explosive or corrosive gas and liquid | |
| Free from dust, oil or water | ||
| Free from electrical noise | ||
