PRODUCT SPEC
YTR-3000II
YTR-2500II
YTR-2000II
YTR-1800II
YTR-1500II
YTR-3000II
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 650 ~4000ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 3000 |
| S | - | |
| Stroke (X-Axis) | P | 2000 |
| S | - | |
| Stroke (Z-Axis) | 4000 | |
| Air Consumption | 100 (Nℓ/ Cycle) | |
| Power Capacity | 7.0 (kVA) | |
| Maximum Payload | 80 (kg) | |
YTR-2500II
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 650 ~4000ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 2500 |
| S | - | |
| Stroke (X-Axis) | P | 2000 |
| S | - | |
| Stroke (Z-Axis) | 4000 | |
| Air Consumption | 32 (Nℓ/ Cycle) | |
| Power Capacity | 6.0 (kVA) | |
| Maximum Payload | 50 (kg) | |
YTR-2000II
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 650 ~4000ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 2000 |
| S | - | |
| Stroke (X-Axis) | P | 1700 |
| S | - | |
| Stroke (Z-Axis) | 3500 | |
| Air Consumption | 25 (Nℓ/ Cycle) | |
| Power Capacity | 6.0 (kVA) | |
| Maximum Payload | 40 (kg) | |

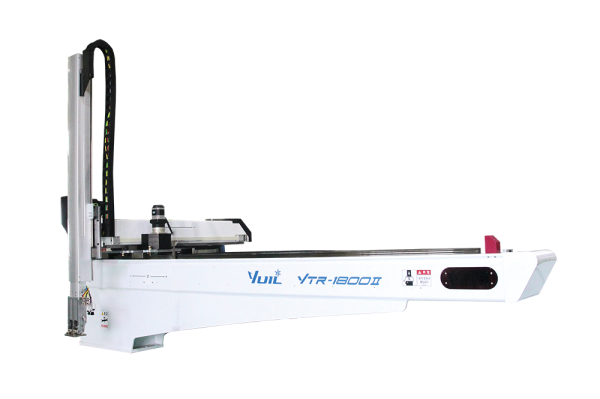

YTR-1800II
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 650 ~4000ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 1800 |
| S | - | |
| Stroke (X-Axis) | P | 1400 |
| S | - | |
| Stroke (Z-Axis) | 2500 | |
| Air Consumption | 20 (Nℓ/ Cycle) | |
| Power Capacity | 5.5 (kVA) | |
| Maximum Payload | 20 (kg) | |
YTR-1500II
| Power Supply | AC220V ±10%, 50/60Hz | |
|---|---|---|
| Operating Pressure | 5 kgf/㎠ (0.5MPa) | |
| Drive Method | AC Servo | |
| Applicable Injection Molding Machine | 650 ~4000ton | |
| Controller | K3-900 | |
| Stroke (Y-Axis) | P | 1500 |
| S | - | |
| Stroke (X-Axis) | P | 1400 |
| S | - | |
| Stroke (Z-Axis) | 2000 | |
| Air Consumption | 20 (Nℓ/ Cycle) | |
| Power Capacity | 5.5 (kVA) | |
| Maximum Payload | 20 (kg) | |
