Robots

Tak-Out Robot

PRODUCT SPEC

YTX-4000II

YTX-3000II

YTX-2500II

YTX-2000II

YTX-1800IIS

YTX-1800II

YTX-1500IIS

YTX-1500II

YTX-1300IIS

YTX-1300II

YTX-1200IIS

YTX-1200II

YTX-1000IIS

YTX-1000II

YTX-800IIS

YTX-800II

YTX-4000II
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 650 ~4000ton
Controller K3-900
Stroke (Y-Axis) P 4000
S -
Stroke (X-Axis) P 2280
S -
Stroke (Z-Axis) 4800
Air Consumption 65 (Nℓ/ Cycle)
Power Capacity 5.1 (kVA)
Maximum Payload 80 (kg)
YTX-3000II
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 650 ~4000ton
Controller K3-900
Stroke (Y-Axis) P 3000
S -
Stroke (X-Axis) P 2280
S -
Stroke (Z-Axis) 4500
Air Consumption 65 (Nℓ/ Cycle)
Power Capacity 5.1 (kVA)
Maximum Payload 60 (kg)
YTX-2500II
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 650 ~4000ton
Controller K3-900
Stroke (Y-Axis) P 2500
S -
Stroke (X-Axis) P 2100
S -
Stroke (Z-Axis) 4000
Air Consumption 50 (Nℓ/ Cycle)
Power Capacity 4.5 (kVA)
Maximum Payload 45 (kg)
YTX-2000II
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 650 ~4000ton
Controller K3-900
Stroke (Y-Axis) P 2000
S -
Stroke (X-Axis) P 1800
S -
Stroke (Z-Axis) 3500
Air Consumption 45 (Nℓ/ Cycle)
Power Capacity 3.8 (kVA)
Maximum Payload 30 (kg)
YTX-1800IIS
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 650 ~4000ton
Controller K3-900
Stroke (Y-Axis) P 1800
S 1800
Stroke (X-Axis) P 1400
S 1400
Stroke (Z-Axis) 2500
Air Consumption 22 (Nℓ/ Cycle)
Power Capacity 3.8 (kVA)
Maximum Payload 25 (kg)
YTX-1800II
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 650 ~4000ton
Controller K3-900
Stroke (Y-Axis) P 1800
S -
Stroke (X-Axis) P 1600
S -
Stroke (Z-Axis) 2500
Air Consumption 22 (Nℓ/ Cycle)
Power Capacity 2.9 (kVA)
Maximum Payload 25 (kg)
YTX-1500IIS
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 650 ~4000ton
Controller K3-900
Stroke (Y-Axis) P 1500
S 1500
Stroke (X-Axis) P 1040
S 1040
Stroke (Z-Axis) 2000
Air Consumption 8.0 (Nℓ/ Cycle)
Power Capacity 3.0 (kVA)
Maximum Payload 15 (kg)
YTX-1500II
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 650 ~4000ton
Controller K3-900
Stroke (Y-Axis) P 1500
S -
Stroke (X-Axis) P 1240
S -
Stroke (Z-Axis) 2000
Air Consumption 8.0 (Nℓ/ Cycle)
Power Capacity 2.0 (kVA)
Maximum Payload 15 (kg)
YTX-1300IIS
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 100 ~650ton
Controller K3-900
Stroke (Y-Axis) P 1300
S -
Stroke (X-Axis) P 850
S 850
Stroke (Z-Axis) 2000
Air Consumption 8.0 (Nℓ/ Cycle)
Power Capacity 3.0 (kVA)
Maximum Payload 10 (kg)
YTX-1300II
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 100 ~650ton
Controller K3-900
Stroke (Y-Axis) P 1300
S -
Stroke (X-Axis) P 800
S -
Stroke (Z-Axis) 2000
Air Consumption 8.0 (Nℓ/ Cycle)
Power Capacity 2.0 (kVA)
Maximum Payload 10 (kg)
YTX-1200IIS
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 100 ~650ton
Controller K3-900
Stroke (Y-Axis) P 1200
S -
Stroke (X-Axis) P 800
S 800
Stroke (Z-Axis) 1800
Air Consumption 7.0 (Nℓ/ Cycle)
Power Capacity 2.4 (kVA)
Maximum Payload 10 (kg)
YTX-1200II
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 100 ~650ton
Controller K3-900
Stroke (Y-Axis) P 1200
S -
Stroke (X-Axis) P 750
S -
Stroke (Z-Axis) 1800
Air Consumption 7.0 (Nℓ/ Cycle)
Power Capacity 1.5 (kVA)
Maximum Payload 10 (kg)
YTX-1000IIS
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 100 ~650ton
Controller K3-900
Stroke (Y-Axis) P 1000
S 600
Stroke (X-Axis) P 750
S 600
Stroke (Z-Axis) 1600
Air Consumption 7.0 (Nℓ/ Cycle)
Power Capacity 2.4 (kVA)
Maximum Payload 8 (kg)

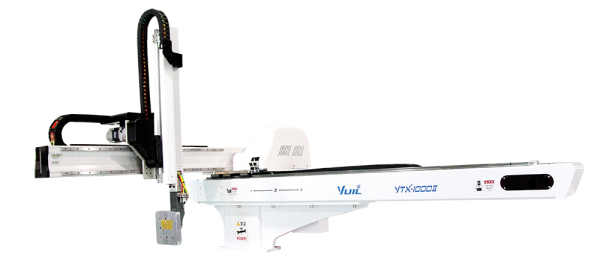

YTX-1000II
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 100 ~650ton
Controller K3-900
Stroke (Y-Axis) P 1000
S -
Stroke (X-Axis) P 750
S -
Stroke (Z-Axis) 1600
Air Consumption 7.0 (Nℓ/ Cycle)
Power Capacity 1.5 (kVA)
Maximum Payload 8 (kg)
YTX-800IIS
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 100 ~650ton
Controller K3-900
Stroke (Y-Axis) P 800
S 800
Stroke (X-Axis) P 500
S 500
Stroke (Z-Axis) 1400
Air Consumption 6.0 (Nℓ/ Cycle)
Power Capacity 2.4 (kVA)
Maximum Payload 5 (kg)
YTX-800II
Power Supply AC220V ±10%, 50/60Hz
Operating Pressure 5 kgf/㎠ (0.5MPa)
Drive Method AC Servo
Applicable Injection Molding Machine 100 ~650ton
Controller K3-900
Stroke (Y-Axis) P 800
S -
Stroke (X-Axis) P 650
S -
Stroke (Z-Axis) 1400
Air Consumption 6.0 (Nℓ/ Cycle)
Power Capacity 1.5 (kVA)
Maximum Payload 5 (kg)
